Model | DGR-F1 |
Productivity | 2400-3000 /h |
Voltage | 380V/220V/50Hz |
Compressed air | 0.6~0.8m3/min |
Total power | 3.5kw |
Dimension | 1250*1200*1850mm |
Net weight | 420kg |
Gross weight | 650kg |
Filling type | liquid，powder，granule，etc |

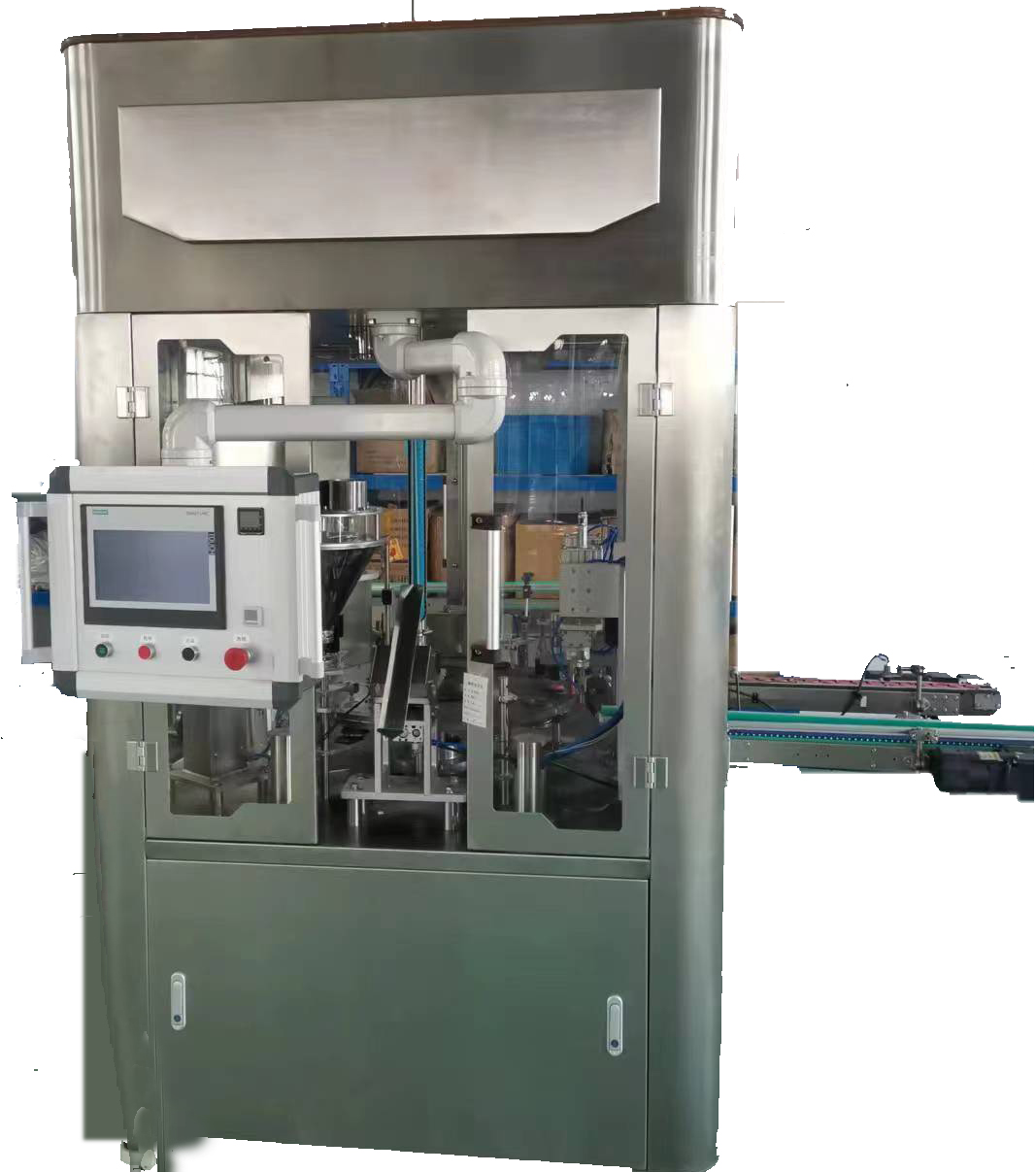

Automatic Cup Filling and Sealing Machine
I. Scope of application
It is suitable for weighing all kinds of granular, powder, liquid and other materials. Such as coffee, milk powder, soya milk powder, tea, flower tea, instant powder, yoghurt and other food materials.
Use capsule shape (class Nespresso, Dolce Gusto, Lavazza BlUe, Point, POD, K-CUP, Kshot, One Cup, etc.).
II. Functional features
1. After detecting the fault, the template does not fill, does not suck the film, does not seal, does not come out of the cup, start to reject to the waste product box, directly recyclable;
2. Automatic detection of film storage capacity, below the limit alarm prompts;
3. The whole machine adopts 304 stainless steel body, plexiglass door structure: beautiful, high safety performance, set the door open stop function to ensure the safety of personnel operation;
4. Automatically record the number of packaged products;
5. Fault alarm function.
-
Fully automatic packaging
Fully automatic completion of the work required for the packaging process, small size of the machine, simple and easy to operate
-
PLC control system
Full process display and real-time monitoring
-
Automatic cup drop
-
Vacuum automatic feeding
-
Automatic filling
Filling accuracy up to ±0.1g
-
Liquid filling system
Add liquid such as essence
-
Automatic suction of dust from lip of the cups
-
Ultraviolet sterilisation
Optional
-
Automatic film suction and release
-
Ammonia filling system
Full ammonia protection from cup drop to sealing, with a residual oxygen content of only 5%
-
Automatic sealing
Flat seal and line seal can be selected according to the cup type
-
Automatically transport out cups
-
Automatic elimination of waste
Optional
-
Automatic detection of the amount of cups stored on the conveyor belt
The use of sensors to detect the position of the cup, to achieve the detection line below the cup alarm function
